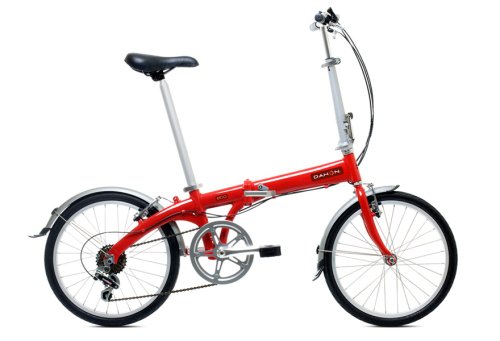

Dahon Eco 3 Features

Dahon Eco 3 Features:

  • The Eco 3 folds up in just 15 seconds, and can be taken on just about any mass transit system when collapsed.
  • The Eco 3 is equipped with a strong and light aluminum frame that adjusts to fit a wide range of riders.
  • The bike is also incredibly stable compared to most foldable bikes.
  • The BioLogic II frame also supports Dahon’s AutoLok technology and ViseGrip latching mechanisms.
    The latching mechanisms are extremely strong and easy to operate, with a beautifully smooth shape that fits the hand perfectly.
  • Folding hinges with AutoLok technology add to the bike’s safety, as they automatically lock shut when the lever is closed.
Perfect for >
  • Rush-hour commutes.
  • Stashing in your car as secondary transport.
  • A leisurely ride to brunch on the weekend.
Technology Highlights >
  • Folds in fifteen seconds so you can take it with you anywhere.
  • Strong and light 7005 aluminum frame.
  • Adjusts to fit a wide range of riders.
  • Biologic II frame geometry is stable and comfortable.

Specifications

Dahon Eco 3 Specifications:

Speeds >
  • 7
Gear Inches >
  • 36″ – 72″
Distance > Seatpost to Handlebar >
  • Min > 595 mm (23.2″)
  • Max > 595 mm (23.2″)
Distance > Saddle to Pedal >
  • Min > 625 mm (24.4″)
  • Max > 790 mm (31″)
Folding Size >
  • 30 x 80 x 66 cm (11.7″ x 31.2″ x 25.7″)
Weight >
  • 12.1 kg (26.7 lb)
Rear derailleur >
  • Shimano TX-31.
Suggested Rider Height >
  • 142 – 193 cm (4’8″- 6’4″)
Max Rider Weight >
  • 105 kg (230 lb)
Frame >
  • AA Series, Dahon patented ViseGrip technology
Fork >
  • Hi-tensile steel, TIG welded, curved blade.
Handlepost >
  • Adjustable, patented AutoLok technology, steel
Headset >
  • Oversized, 1 1/8″
Grip/Bars Tape >
  • PVC 120 mmBlack
Saddle >
  • Comfort Black
Seatpost >
  • SuperOversize Seatpost, 6061 aluminum, Silver
Seat Clamp >
  • Dahon Patented, AntiFulcrum Technology
Front Brake >
  • ProMax V, aluminum
Rear Brake >
  • ProMax V, aluminum
Brake Levers >
  • ProMax V, aluminum bracket/aluminum lever
Front Hub >
  • Aluminum, 28H, Silver
Rear Hub >
  • Aluminum freewheel, for 7 speed
Spokes >
  • Stainless steel, 14G
Rims >
  • Aluminum, 20” x 1.5”
Tires >
  • Kenda Kwest, 20″ x 1.5″, high pressure 65 psi
Shifter(s) >
  • Shimano Revo, 7 speed
Rear Derailleur >
  • Shimano, RDFT30, super short cage
Crankset >
  • Cold-Forged Aluminum Cranks, double chain guard
Cassette/Freewheel >
  • Shimano 7 speed, 14-28T
Bottom Bracket >
  • 5 piece set w/ axle
Chain >
  • KMC Z30
Pedals >
  • Suntour, folding
Mudguard >
  • Optional
Rack >
  • Optional
Kickstand >
  • Alloy, silver, center mounted

What do people say

It folds & unfolds very easy. For a foldup, I found it more comfortable to ride than expected. There is a bit of twitch in the steering but not as much as I expected. Read a full review.

Having written on all these nice things about the Eco 3, in my humble opinion, there are a few things every potential buyer needs to know before buying it: This bike is ideal for short distances, say less than 20 miles of non-stop riding on fairly flat grounds. Even the 7-speed is not enough to ease you up a steep grade without you getting winded. While riding your right leg pant bottom tend to get caught on the folding mechanism and can rip your pants.Read a full review.

I just returned from a five week road trip across the U.S. where my traveling companion was an Eco 3 in the back seat of my Camry. I biked along river paths, I cycled up and over the hills in the Bay Area, and I rode around towns. This bike with its seven speeds and wide ranging adjustability was comfortable to ride in all these conditions. When I’d finish with a ride I’d fold it back up and get on mass transit or place it back in my car. It’s great to ride, it’s easy to carry and it’s really well built.
No review feels complete and correct without constructive criticism but about the only thing I can muster is a wish. Some of the Eco bikes above and below this model came with a rear rack. Having one would have been nice. Instead I was always wearing a backpack. When I bought it I knew the bike lacked a rack but I figured I’ll buy one separately. Not an easy thing to do for a frame with 20″ wheels. I ended up buying a Dahon-designed rack and installing it for a cost of around $40.Read a full review.
